RS232 Repeater
ADA-1010

RS232 Repeater* The prices are given in the response to the offer.

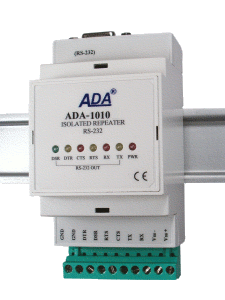

ADA-1010 repeater separates RS232 port of PC from operating device and amplifies signal of RS232 standard for other 15m without interfere in byte format. It can be used to communicate with other distant device such as: PC, controller or cash register.
ADA-1010 does not require power supply from RS232 port, supports asynchronous data transitions rate up to 230,4 kbps. ADA-1010 is equipped with one female DB-9F for RS232 (IN) connection and terminal block for RS232 (OUT) connection and power supply. Connector DB-9F is made like DCE, it let connect repeater to PC using the extension cable RS232 (typical cable for modem connection) without crossing TX with RX, RTS with CTS, DTR with DSR. Separator uses signals: RX, TX, RTS, CTS, DTR, DSR and SG (signal ground). Other signal are not used.
You can use this repeater as:
  • Separator of RS232 PC port getting galvanic isolation for electronics PC from connected device,
  • Repeater – using three section of 9-wire shielded cable and two ADA-1010 separators You can connect two devices with RS232 interface together which are distance up to 45m (3 x 15m),
  • Extender RS232 port using six pairs twisted cable and two ADA-1010 separators You can connect two devices with RS232 interface together which are distance up to 300m (3 x 15m).

Example of connection repeater ADA-1010
