No longer produced

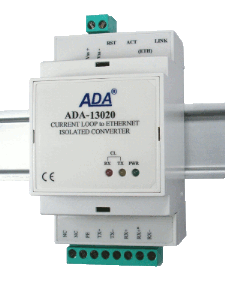

ETHERNET to Current Loop Converter
ADA-13020

ETHERNET to Current Loop Converter* The prices are given in the response to the offer.
ADA-13020 converter is use for data transmission between devices equip with Current Loop interface via LAN/WAN network. Functioning in ETHERNET network can be in virtual serial port mode, TCP serial bridge mode, UDP serial bridge mode. Converter can use protocols: TCP, UDP, DHCP, SNMP, SSL/TLS, Telnet, Rlogin, LPD, HTTP/HTTPS, SMTP, ICMP, IGMP, ARP. You can configure and menage ADA-13020 via Internet browser, because it has implemented WWW server. Converter use the signals RX+,RX-,TX+,TX of Current Loop interface. It is adapted for powering from the regular voltage external source which value should contain from 10V to 30V and was provided from the power pack about the 3W power. Converter has Implemented protection against opposite polarization of power supply and over-voltage protection on CL bus. ADA-13020 has galvanic isolation between ETHERNET and Current Loop interface and power supply and optoisolation in signal channel between ETHERNET and Current Loop interface. Converter has also inside over-voltage low-energy for each line of Current Loop interfaces but to the lightning protection of the connection You should use external lightning conductors e.g. typical protection a telephone line.
